Model | Material | Section | Min Height | Max Height | Folded Collapsed |
Max Diameter | Weight | Max Load | Retail Price |
---|---|---|---|---|---|---|---|---|---|

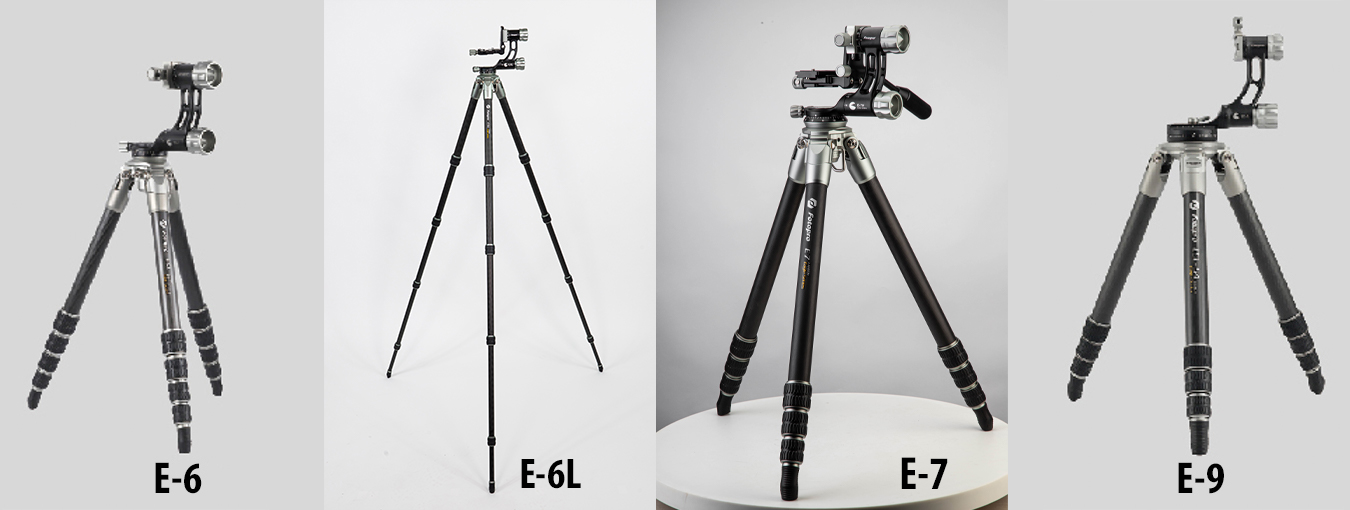

E-6 | Carbon Fiber | 5-sec | 125mm/4.92in | 1400mm/55.11in | 495mm/19.48in | Ø28mm/1.10in | 2.08kg/4.58lbs | 15kg/33.06lbs | $1,099 |
E-6L E-7 |
Carbon Fiber Carbon Fiber |
5-sec 4-sec |
125mm/4.92in 155mm/6.10in |
1600mm/62.99in 1610mm/63.38in |
545mm/21.45in 713mm/28.07in |
Ø28mm/1.10in Ø28mm/1.10in |
2.43kg/5.35lbs 2.84kg/6.26lbs |
10kg/22.04lbs 10kg/22.04lbs |
$1,149 $1,199 |
E-9 | Carbon Fiber | 4-sec | 155mm/6.10in | 1600mm/62.99in | 635mm/25in | Ø41mm/1.61in | 4.2kg/9.25lbs | 30kg/66.13lbs | $1,399 |

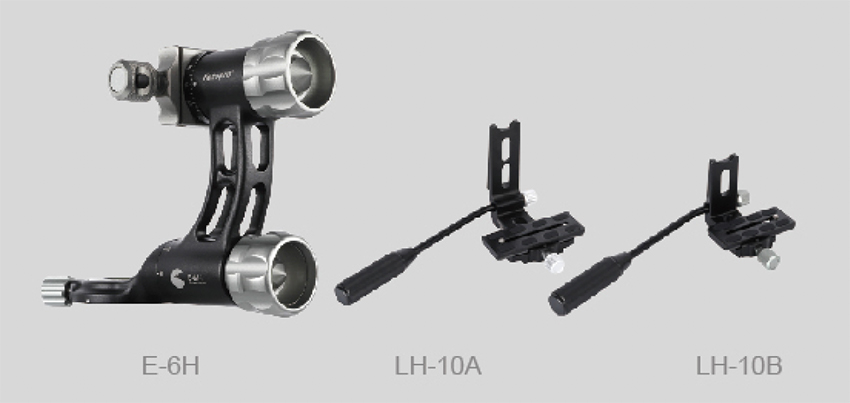

Model | Dimensions L*W*H | Weight | Max Load | Retail Price |
---|---|---|---|---|
E-6H | 190x59x120mm/7.48x2.32x4.72in | 0.7kg/1.54lbs | 15kg/33.06lbs | $449 |
LH-10A | 279x139x187mm/10.98x5.47x7.36in | 0.425kg/0.93lbs | N/A | Included with EGL-94 Tripod |
LH-10B | 272x123x92mm/10.7x4.84x3.62in | 330g/0.72lbs | N/A | Included with E-6H head and EGL-65 Tripod |
